Secure mail and post boxes by The Safety Letterbox Company
SPEAK TO THE TEAM
Secured by design

2 Hour Fire Rated
Parcel Boxes

Introducing the myRENZbox modula fully tested and certified 2 hour Fire Rated parcel box range.

As the UK’s leading manufacturer of mail and parcel boxes, we are dedicated to innovation, continuously developing high-quality, specification-led solutions. At SLB, we prioritise research and development to bring products to market that uphold the highest safety standards.

Our 2-hour fire-rated parcel boxes are rigorously tested to withstand and contain fire for up to 120 minutes. Independently certified by Warrington Fire in compliance with BS EN 1363-1:2012, they provide enhanced safety and reliability.

Designed for flexible installation, they can be wall-mounted, wall-recessed, or freestanding, ensuring seamless integration into any setting.

Fire Rated Parcel Box Models

Control Module A

Control Module B

Extension Module A

Extension Module B

Extension Module C

Extension Module D

Extension Module E

Extension Module F

Extension Module G

Extension Module H

Extension Module I

2 hour fire rated mailboxes

Comprehensive Fire Rated Testing

The fire rating test involved removing the backs of the parcel boxes to simulate a fire inside and at the rear. Next, the boxes were placed in a furnace reaching temperatures of 1,064°C. After 132 minutes, our myRENZbox parcel boxes showed no signs of weakness or deterioration, successfully passing the test. As a result, they now carry a 2-hour fire rating, fully compliant with the BS EN 1363-1:2012 standard.

Furthermore, as a trusted British manufacturer, we provide expert safety guidance on the correct use and installation of fire-rated parcel boxes within fire-rated walls. In addition, our team offers comprehensive advice and support to ensure proper handling and installation on-site, prioritising safety and compliance at every step.

Working with Warrington Fire

The Safety Letterbox Company R&D team collaborated with Warringtonfire, becoming the first company to achieve a full 2-hour Fire Rating (integrity only), tested to BS EN 1363-1:2012. As a result, both parcel boxes and mailboxes can be safely installed within fire-rated areas, walls, or escape routes, provided the appropriate guidelines are followed.*

For more information, please contact us.

Safety Compliance & Fire Regulations: Why Compliance Matters in Mail & Parcel Delivery

This impactful short film highlights the critical role of fire compliance in mail and parcel delivery systems across the built environment. Additionally, it explains key standards such as BS 476 and BS EN 1363-1, showcases our certified 2-hour fire-rated solutions, and features insights from our Managing Director. Consequently, it is a must-watch for architects, developers, and industry professionals committed to creating safer, compliant buildings.

BS EN 1363-1:2012

Our 2-hour Fire Rated Parcel Boxes feature specially designed elements to meet BS EN 1363-1:2012 fire rating standards. Additionally, they offer versatile installation options and can be surface-mounted, recessed, or freestanding. However, proper placement within a fire-rated area and adherence to installation guidelines are essential to ensure full compliance.

Fire 2 Hour Fire Rated Parcel Box

myRENZbox has undergone rigorous testing under extreme conditions at the Warrington Fire Research Laboratory. The parcel boxes demonstrated:

– 132 minutes of fire resistance
– BS EN 1363-1:2012 compliance
– Class 0 fire rating certification
– The ability to contain or withstand fire for up to two hours

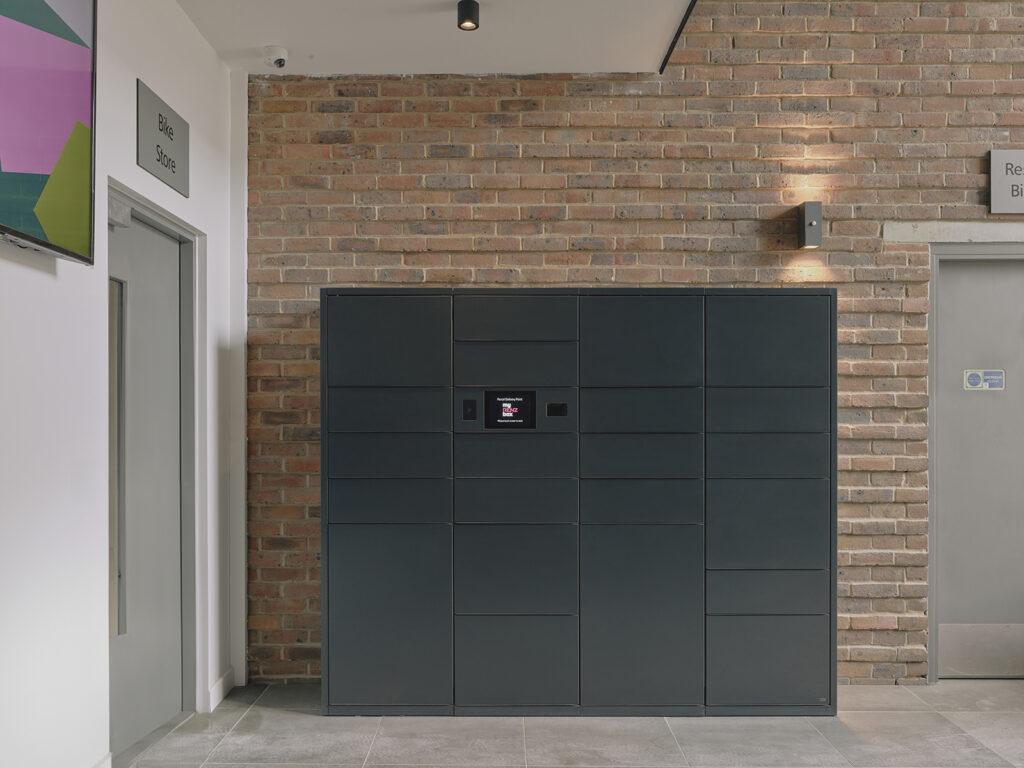

myrenzbox smart parcel locker 2 hour fire rated

Research & Development

Our Research and Development team collaborated with Exova Warrington, becoming the first company to achieve a full 2-hour Fire Rating (integrity only) for this specially designed parcel box range, tested to BS EN 1363-1:2012 standards.

Furthermore, we remain committed to innovation, continuously pushing the boundaries of fire-rated product development. With ongoing R&D investment and further testing, we are expanding our range and setting new industry standards.

myRENZbox Smart Parcel System

Integration with Existing Systems

Beyond our standard processes, we provide expert technical support, ensuring seamless integration with building management software, electronic door entry systems, and existing organisational protocols.

Additionally, the MODULA Parcel Box System connects to an online portal at www.myrenz.com
, allowing system owners to manage operations remotely. Furthermore, registered users can log in to their individual accounts for convenient, efficient parcel management.

Designed for New Build and Retrofit Projects

The MODULA System is designed for both new-build and retrofit projects, providing flexible options for internal and external installations. Additionally, it offers an ideal solution to the challenges of online parcel deliveries. Moreover, the system is future-proofed to meet the evolving needs of tomorrow, ensuring long-term efficiency and reliability.

What is myRENZbox Modula?

As part of the Classic range, MODULA is a fully scalable, intelligent parcel box system, delivering proven functionality at a competitive price. Additionally, the integration of advanced hardware with the unique RENZ software platform ensures complete automation of parcel delivery, collection, and returns.

At the core, the system includes two standalone control modules, with the option to add up to nine extension modules. This setup allows the system to manage up to 500 compartments, all secured with electronic locks controlled by a single unit.

Furthermore, extension modules can be easily added to the control module to meet the precise needs of each project. Moreover, we provide expert guidance to determine the optimal number and distribution of parcel boxes for every installation.

myRENZbox Modula Column Options

2 hour Fire Rated parcel box Control Module A
myRENZbox Modula

Fire Rated Parcel Box Control Module A

myRENZbox – Intelligent Modula System, main control module. Including, The Renz 8″ Control Unit Plus with integrated parcel delivery boxes 2x XS, 1x S, 1x M, 1x XL, casing sheet steel, standard RAL Colour, Manufactured according to EN13724.

DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm

WEIGHT
Nett weight: 115kg
Gross weight: 290kg (35kg per compartment)

POWER CONSUMPTION
Hour: 35 w
Day: 840 w
Year: 306.6 kw

CAPACITY
2x XS
1x S
1x M
1x XL

Outer DimensionsInternal Dimensions
XS533 x 97 x 408468 x 81 x 380
S265468 x 178 x 380
M120468 x 372 x 380
XL30H x 235W468 x 740 x 380

FINISH

RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost

BARCODE SCANNER

myRENZbox Bar Code Scanner / Reader
ZEBRA SE3307VA bar code scanner / reader integrated within control module.

MYRENZ.COM PORTAL

The system is accessible as a landlord account, allowing management of the parcel box, user accounts, and statistical reporting. Additionally, registered users can access their personal myRENZbox accounts to manage deliveries and collections conveniently.

MYRENZBOX SERVICE TAG

A red RFID electronic chip SERVICE TAG is supplied, pre-programmed to provide direct access to the service menu on the myRENZbox touch screen. As a result, management can easily operate and maintain the parcel box system with efficiency and precision.

MYRENZBOX MOBILE APP

The free myRENZbox mobile app is available for download from the App Store or Google Play Store, and is compatible with both iOS and Android devices. Additionally, the app allows registered users to manage personal parcel deliveries and collections conveniently from their smartphone or tablet.

myRENZbox Modula

Fire Rated Parcel Box Control Module B

myRENZbox – Intelligent Modula System, main control module. Including, The Renz 8″ Control Unit Plus with integrated parcel delivery boxes 4x S, 2x M, casing sheet steel, standard RAL Colour, Manufactured according to EN13724.

DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm

WEIGHT
Nett weight: 113kg
Gross weight: 323kg (35kg per compartment)

POWER CONSUMPTION
Hour: 35 w
Day: 840 w
Year: 306.6 kw

CAPACITY
4x S
2x M

Outer DimensionsInternal Dimensions
XS533 x 97 x 408468 x 81 x 380
S533 x 194 x 408468 x 178 x 380
M533 x 388 x 408468 x 372 x 380
XL533 x 776 x 408468 x 740 x 380

FINISH

RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost

BARCODE SCANNER

myRENZbox Bar Code Scanner / Reader
ZEBRA SE3307VA bar code scanner / reader integrated within control module.

MYRENZ.COM PORTAL

The system is accessible as a landlord account, allowing management of the parcel box, user accounts, and statistical reporting. Additionally, registered users can access their personal myRENZbox accounts to manage deliveries and collections conveniently.

MYRENZBOX SERVICE TAG

A red RFID electronic chip SERVICE TAG is supplied, pre-programmed to provide direct access to the service menu on the myRENZbox touch screen. As a result, management can easily operate and maintain the parcel box system with efficiency and precision.

MYRENZBOX MOBILE APP

The free myRENZbox mobile app is available for download from the App Store or Google Play Store, and is compatible with both iOS and Android devices. Additionally, the app allows registered users to manage personal parcel deliveries and collections conveniently from their smartphone or tablet.

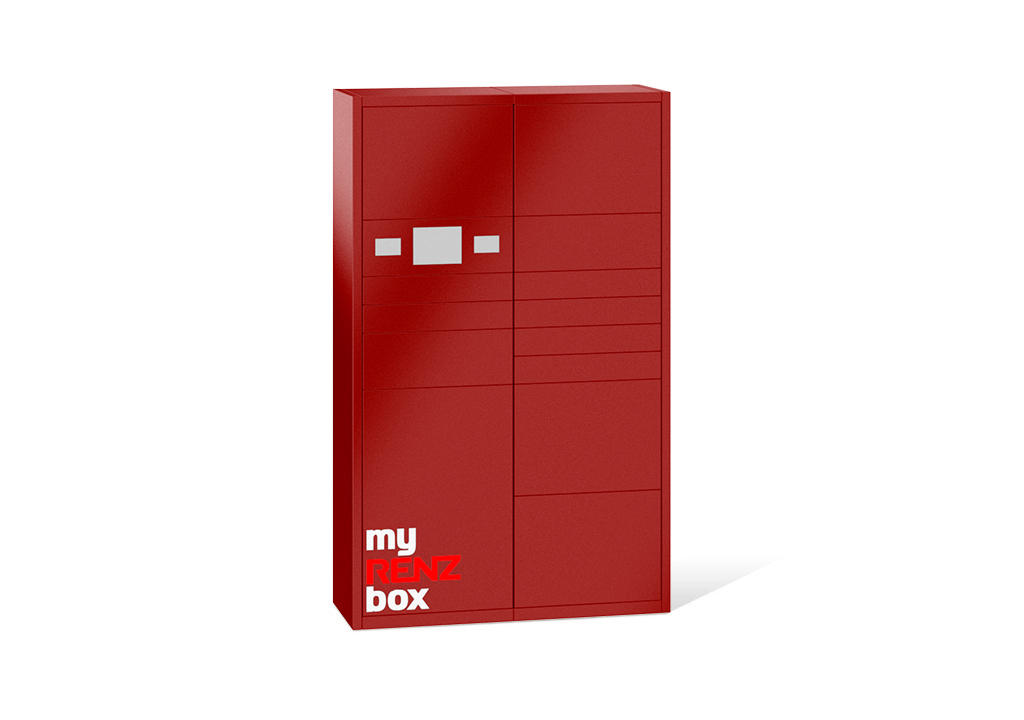

2 Hour Fire Rated Parcel box Extension Module A
myRENZbox Modula

Fire Rated Parcel Box Extension Module A

myRENZbox – Integrated parcel delivery boxes 4x XS, 1x S, 3x M. Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.

DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm

WEIGHT
Nett weight: 113kg
Gross weight: 323kg (35kg per compartment)

POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw

CAPACITY
4x XS
1x S
3x M

Outer DimensionsInternal Dimensions
XS533 x 97 x 408468 x 81 x 380
S533 x 194 x 408468 x 178 x 380
M533 x 388 x 408468 x 372 x 380
XL533 x 776 x 408468 x 740 x 380

FINISH

RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost

MYRENZ.COM PORTAL

The system is accessible via a landlord account, allowing management of the parcel box, user accounts, and detailed statistical reporting. Additionally, registered users can access their personal myRENZbox accounts to manage deliveries and collections efficiently.

MYRENZBOX SERVICE TAG

A red RFID electronic chip SERVICE TAG is supplied, pre-programmed to provide direct access to the myRENZbox touch screen service menu. As a result, managers can operate and maintain the parcel box system quickly and efficiently.

2 Hour Fire Rated Parcel box Extension Module B
myRENZbox Modula

Fire Rated Parcel Box Extension Module B

myRENZbox – Integrated parcel delivery boxes 3x S, 1x M, 1x XL. Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.

DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm

WEIGHT
Nett weight: 80kg
Gross weight: 255kg (35kg per compartment)

POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw

CAPACITY
3x S
1x M
1x XL

Outer DimensionsInternal Dimensions
XS533 x 97 x 408468 x 81 x 380
S533 x 194 x 408468 x 178 x 380
M533 x 388 x 408468 x 372 x 380
XL533 x 776 x 408468 x 740 x 380

FINISH

RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost

2 Hour Fire Rated Parcel box Extension Module C
myRENZbox Modula

Fire Rated Parcel Box Extension Module C

myRENZbox – Integrated parcel delivery boxes 1x XL, 2x M, 1x S. Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.

DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm

WEIGHT
Nett weight: 77kg
Gross weight: 217kg (35kg per compartment)

POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw

CAPACITY
3x S
1x M
1x XL

Outer DimensionsInternal Dimensions
XS533 x 97 x 408468 x 81 x 380
S533 x 194 x 408468 x 178 x 380
M533 x 388 x 408468 x 372 x 380
XL533 x 776 x 408468 x 740 x 380

FINISH

RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost

2 Hour Fire Rated Parcel box Extension Module D
myRENZbox Modula

Fire Rated Parcel Box Extension Module D

myRENZbox – Integrated parcel delivery boxes 2x XL, 1x S. Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.

DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm

WEIGHT
Nett weight: 75kg
Gross weight: 180kg (35kg per compartment)

POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw

CAPACITY
1x S
2x XL

Outer DimensionsInternal Dimensions
XS533 x 97 x 408468 x 81 x 380
S533 x 194 x 408468 x 178 x 380
M533 x 388 x 408468 x 372 x 380
XL533 x 776 x 408468 x 740 x 380

FINISH

RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost

myRENZbox Modula

Fire Rated Parcel Box Extension Module E

myRENZbox – Integrated parcel delivery boxes, narrow 300mm wide, 1 x Nxl, Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.

DIMENSIONS
Height: 1828mm -0/+30
Width: 300mm
Depth: 408mm

WEIGHT
Nett weight: 55kg
Gross weight: 90kg (35kg per compartment)

POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw

CAPACITY
1x Nxl
2x XL

Outer DimensionsInternal Dimensions
NXS300 x 97 x 408235 x 81 x 380
NS300 x 194 x 408235 x 178 x 380
NM300 x 388 x 408235 x 372 x 380
NL300 x 776 x 408235 x 740 x 380
NXL300 x 1746 x 408235 x 1694 x 380

FINISH

RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost

myRENZbox Modula

Fire Rated Parcel Box Extension Module F

myRENZbox – Integrated parcel delivery boxes, narrow 300mm wide, 3x NS, 1x Nm & 1x Nl, Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.

DIMENSIONS
Height: 1828mm -0/+30
Width: 300mm
Depth: 408mm

WEIGHT
Nett weight: 60kg
Gross weight: 235kg (35kg per compartment)

POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw

CAPACITY
3 x Ns
1x Nm
1x Nl

Outer DimensionsInternal Dimensions
NXS300 x 97 x 408235 x 81 x 380
NS300 x 194 x 408235 x 178 x 380
NM300 x 388 x 408235 x 372 x 380
NL300 x 776 x 408235 x 740 x 380
NXL300 x 1746 x 408235 x 1694 x 380

FINISH

RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost

myRENZbox Modula

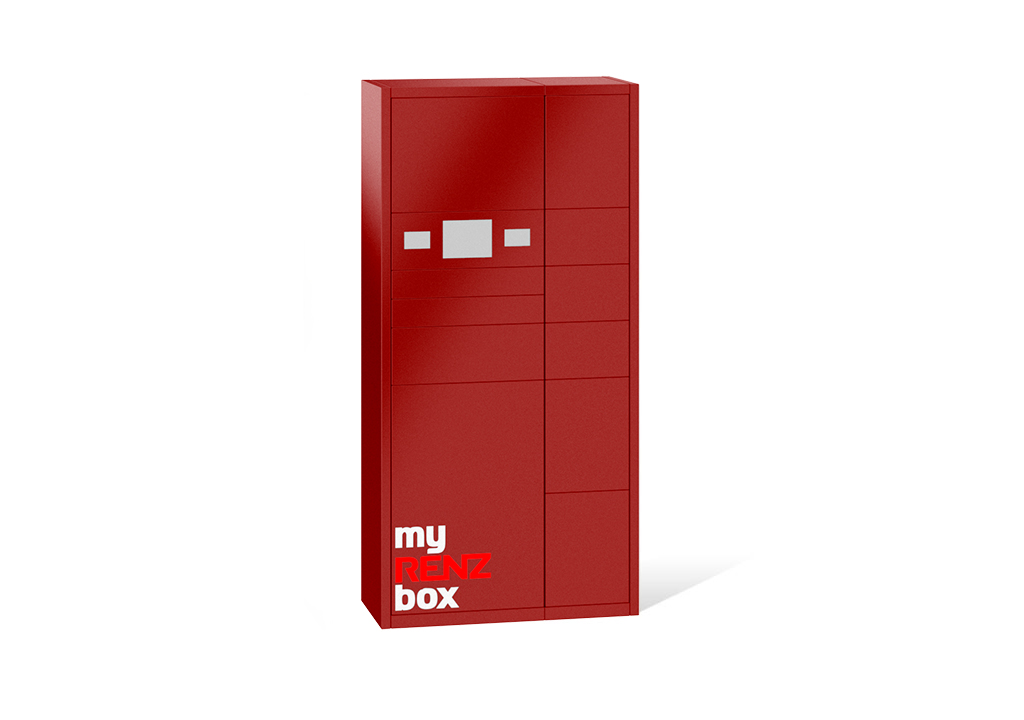

Fire Rated Parcel Box Extension Module G

myRENZbox – Integrated parcel delivery boxes, narrow 300mm wide, 3x Ns & 3x Nm, Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.

DIMENSIONS
Height: 1828mm -0/+30
Width: 300mm
Depth: 408mm

WEIGHT
Nett weight: 62kg
Gross weight: 272kg (35kg per compartment)

POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw

CAPACITY
3 x Ns
3x Nm

Outer DimensionsInternal Dimensions
NXS300 x 97 x 408235 x 81 x 380
NS300 x 194 x 408235 x 178 x 380
NM300 x 388 x 408235 x 372 x 380
NL300 x 776 x 408235 x 740 x 380
NXL300 x 1746 x 408235 x 1694 x 380

FINISH

RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost

myRENZbox Modula

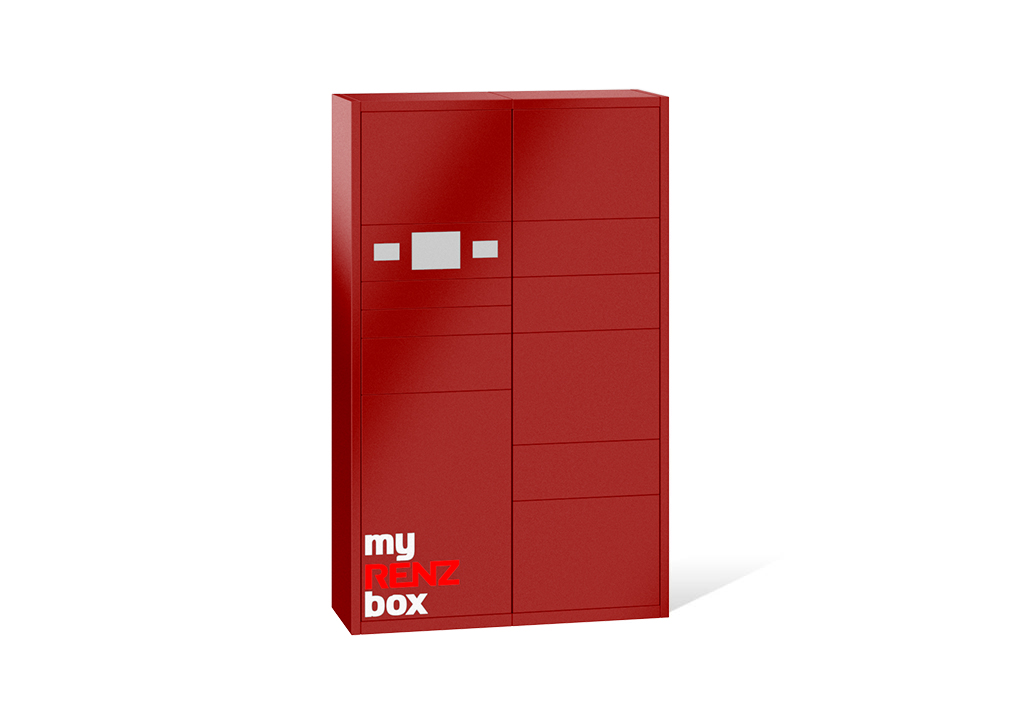

Fire Rated Parcel Box Extension Module H

myRENZbox – Integrated parcel delivery boxes 3x S & 3x M. Casing Sheet steel, Standard RAL colour. Overall Height 1828mm +0/+30, Width 533mm, Depth 408mm. 1 Control Module (A or B) is required for additional extension modules to work.

DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm

WEIGHT
Nett weight: 113kg
Gross weight: 323kg (35kg per compartment)

POWER CONSUMPTION
Hour: 35 w
Day: 840 w
Year: 306.6 kw

CAPACITY
4x S
2x M

Outer DimensionsInternal Dimensions
XS533 x 97 x 408468 x 81 x 380
S533 x 194 x 408468 x 178 x 380
M533 x 388 x 408468 x 372 x 380
XL533 x 776 x 408468 x 740 x 380

FINISH

RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost

BARCODE SCANNER

myRENZbox Bar Code Scanner / Reader
ZEBRA SE3307VA bar code scanner / reader integrated within control module.

MYRENZ.COM PORTAL

The system is accessible through a landlord account, allowing management of the parcel box, user accounts, and statistical reporting. Additionally, registered users can manage their personal myRENZbox accounts for convenient parcel delivery and collection.

MYRENZBOX SERVICE TAG

A red RFID electronic chip SERVICE TAG is supplied, pre-programmed to give direct access to the myRENZbox touch screen service menu. As a result, managers can control and maintain the parcel box system efficiently and securely.

myRENZbox Modula

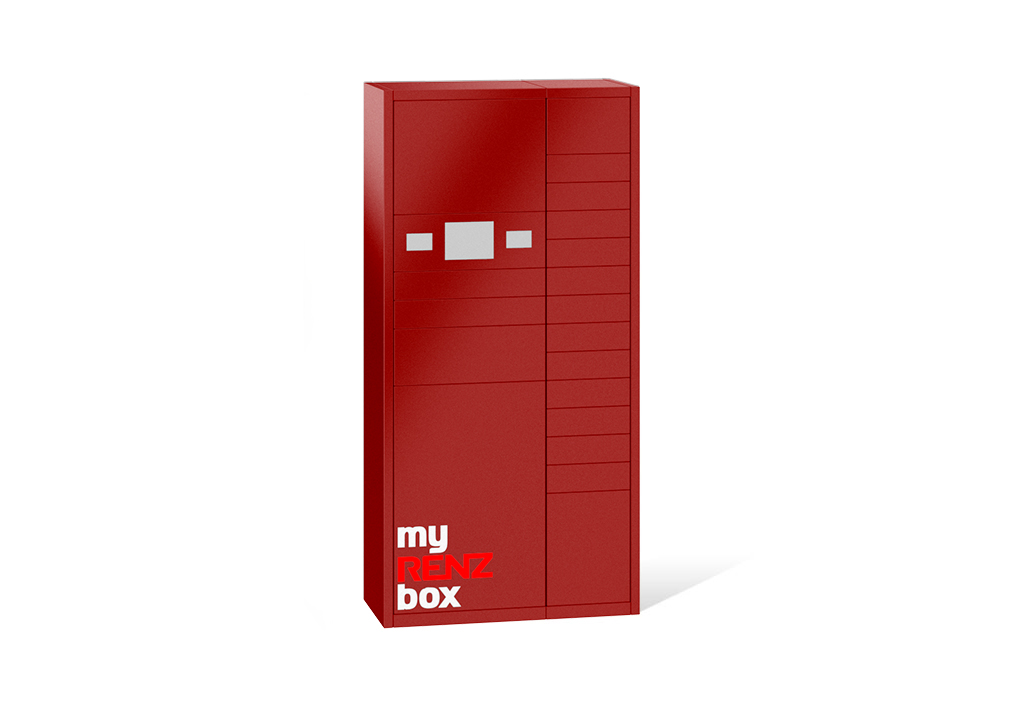

Fire Rated Parcel Box Extension Module I

myRENZbox – Integrated parcel delivery boxes, narrow 300mm wide, 12x Nxs, 1x Ns & 1x Nm, Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.

DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm

WEIGHT
Nett weight: 70kg
Gross weight: 350kg (35kg per compartment)

POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw

CAPACITY
12x Nxs
1x Ns
1x Nm

Outer DimensionsInternal Dimensions
NXS300 x 97 x 408235 x 81 x 380
NS300 x 194 x 408235 x 178 x 380
NM300 x 388 x 408235 x 372 x 380
NL300 x 776 x 408235 x 740 x 380
NXL300 x 1746 x 408235 x 1694 x 380

FINISH

RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost

No-obligation FREE consultation

We welcome the chance to discuss your project and we can share all that is current in terms of standards and product options totally free of charge.

Simply complete and submit the form and we will get back in touch WITHIN 24 HOURS to talk through your requirements.

We also provide Autocad drawings as required – it’s all part of the service!

Or drop us a quick email: [email protected]

safety letterbox mailbox Grid Icon

No-obligation FREE consultation

We welcome the chance to discuss your project and we can share all that is current in terms of standards and product options totally free of charge.

Simply complete and submit the form and we will get back in touch WITHIN 24 HOURS to talk through your requirements.

We also provide Autocad drawings as required – it’s all part of the service!

Or drop us a quick email: [email protected]

This website uses cookies to improve your experience. If you continue to use this site, you agree with it. For more information please visit our Cookie Policy.
