myRENZbox MODULA is a fully scalable smart parcel box system with proven functionality at the best price.
The combination of hardware and unique RENZ software platform enables full automation of the parcel delivery, collection and returns process.
myRENZbox Modula
What is myRENZbox Modula?
Part of the Classic range, MODULA is a fully scalable intelligent parcel box system with proven functionality that is competitively priced. The combination of hardware and unique RENZ software platform enables full automation of the parcel delivery, collection and returns process.
At the ‘heart’ of this scalable system is a choice of two standalone control modules with the option of a further nine parcel extension modules. The system can be extended to manage up to 500 box compartments with electronic locks operated from a single controller.
Extension modules are simply added to the control module to match the exact project requirements. We provide guidance to help configure the specific number and size distribution of parcel boxes required for each project.
Integration with Existing Systems
In addition to the standard processes we can also provide expert technical support to integrate with building management software, electronic door entry systems and to comply with existing organisational protocols.
The MODULA Parcel box system is connected to an online software portal at www.myrenz.com. The system portal enables remote management by the system owner. Registered users can also login to a user portal to manage their individual accounts.
Designed for New Build and Retrofit Projects
Designed for both new build and retrofit projects, the MODULA System is engineered for both internal and external installation. MODULA is an ideal solution for the challenges presented by online parcel deliveries and future proofed for the challenges of tomorrow.
Ideal For Multi-occupancy Properties
The MODULA range of parcel boxes is a smart parcel solution to securely store parcels for multi-occupancy residences.
Extendible Parcel Solution To Meet Changing Requirements
The MODULA parcel solution can be extended by integrating additional columns of products to meet increasing parcel delivery requirements.
Delivering Efficiencies
The MODULA parcel box delivers efficiencies by minimising concierge involvement in the parcel management process.

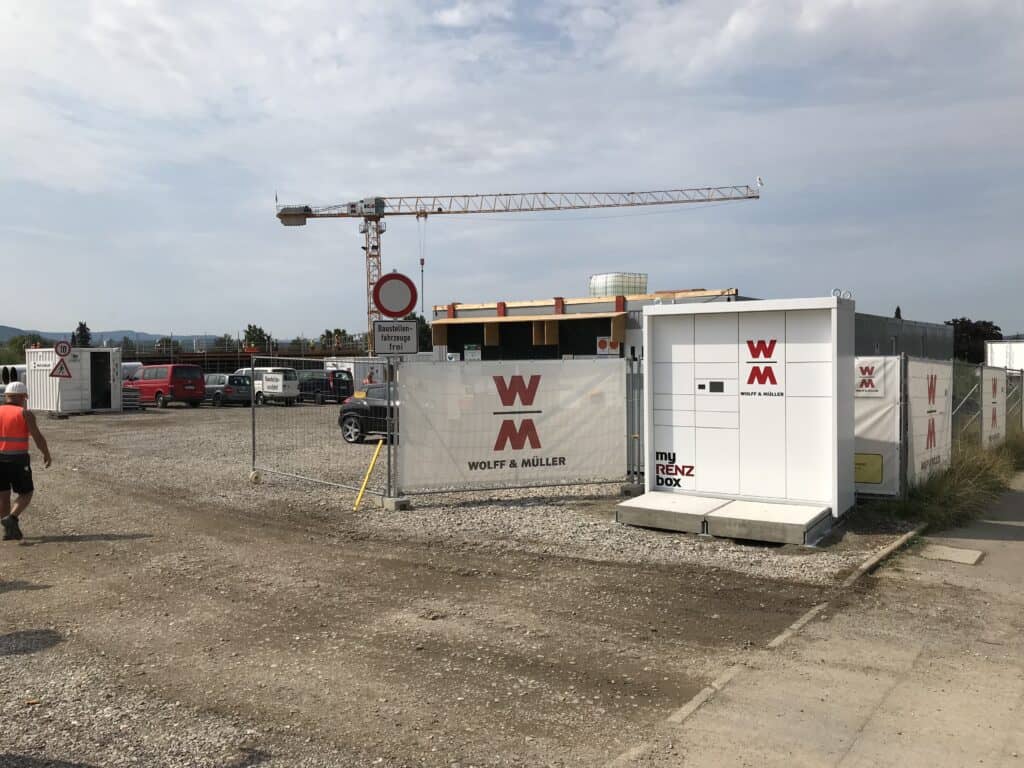

Suitable For Both Internal and External Use
The myRENZbox Modula Parcel Box range is suitable for use in both internal and external covered locations.
Futureproofed Parcel Boxes
The myRENZbox Modula box is flexible for future software process upgrades and adding new functionality to the system.
A Flair For Design
When it comes to parcel boxes, one size doesn’t fit all. We have decades of experience in the design, manufacture and supply of both mail and parcel boxes, meaning we can tailor your intelligent parcel box to your exact needs.
myRENZbox Parcel Solution Modula Column Options
myRENZbox Modula Smart Parcel Box
Control Module A
myRENZbox – Intelligent Modula System, main control module. Including, The Renz 8″ Control Unit Plus with integrated parcel delivery boxes 2x XS, 1x S, 1x M, 1x XL, casing sheet steel, standard RAL Colour, Manufactured according to EN13724.
DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm
WEIGHT
Nett weight: 115kg
Gross weight: 290kg (35kg per compartment)
POWER CONSUMPTION
Hour: 35 w
Day: 840 w
Year: 306.6 kw
CAPACITY
2x XS
1x S
1x M
1x XL
| Outer Dimensions | Internal Dimensions | |
| XS | 533 x 97 x 408 | 468 x 81 x 380 |
| S | 265 | 468 x 178 x 380 |
| M | 120 | 468 x 372 x 380 |
| XL | 30H x 235W | 468 x 740 x 380 |
FINISH
RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost
BARCODE SCANNER
myRENZbox Bar Code Scanner / Reader
ZEBRA SE3307VA bar code scanner / reader integrated within control module.
MYRENZ.COM PORTAL
Accessible as a landlord account to manage the parcel box, user accounts and provide statistical reporting. Also open to registered users to manage personal myRENZbox accounts.
MYRENZBOX SERVICE TAG
A red RFID electronic chip SERVICE TAG is supplied, pre-programmed to provide management access to the service menu directly on the myRENZbox touch screen.
MYRENZBOX MOBILE APP
Free mobile app downloadable from either the ‘app store’ or ‘google play store’ & compatible with either IOS or ANDROID operating systems. myRENZbox mobile app is a registered user application for managing personal parcel deliveries & collections.
myRENZbox Modula Smart Parcel box
Control Module B
myRENZbox – Intelligent Modula System, main control module. Including, The Renz 8″ Control Unit Plus with integrated parcel delivery boxes 4x S, 2x M, casing sheet steel, standard RAL Colour, Manufactured according to EN13724.
DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm
WEIGHT
Nett weight: 113kg
Gross weight: 323kg (35kg per compartment)
POWER CONSUMPTION
Hour: 35 w
Day: 840 w
Year: 306.6 kw
CAPACITY
4x S
2x M
| Outer Dimensions | Internal Dimensions | |
| XS | 533 x 97 x 408 | 468 x 81 x 380 |
| S | 533 x 194 x 408 | 468 x 178 x 380 |
| M | 533 x 388 x 408 | 468 x 372 x 380 |
| XL | 533 x 776 x 408 | 468 x 740 x 380 |
FINISH
RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost
BARCODE SCANNER
myRENZbox Bar Code Scanner / Reader
ZEBRA SE3307VA bar code scanner / reader integrated within control module.
MYRENZ.COM PORTAL
Accessible as a landlord account to manage the parcel box, user accounts and provide statistical reporting. Also open to registered users to manage personal myRENZbox accounts.
MYRENZBOX SERVICE TAG
A red RFID electronic chip SERVICE TAG is supplied, pre-programmed to provide management access to the service menu directly on the myRENZbox touch screen.
MYRENZBOX MOBILE APP
Free mobile app downloadable from either the ‘app store’ or ‘google play store’ & compatible with either IOS or ANDROID operating systems. myRENZbox mobile app is a registered user application for managing personal parcel deliveries & collections.
myRENZbox Modula Smart Parcel box
Control Module E
myRENZbox – Intelligent Modula System, main control module. Including, The Renz 8″ Control Unit Plus with integrated parcel delivery boxes 2x S, 1x M, 1x XL, casing sheet steel, standard RAL Colour, Manufactured according to EN13724.
DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm
WEIGHT
Nett weight: 115kg
Gross weight: 255kg (35kg per compartment)
POWER CONSUMPTION
Hour: 35 w
Day: 840 w
Year: 306.6 kw
CAPACITY
2x S
1x M
1x XL
| Outer Dimensions | Internal Dimensions | |
| S | 533 x 194 x 408 | 468 x 178 x 380 |
| M | 533 x 388 x 408 | 468 x 372 x 380 |
| XL | 533 x 776 x 408 | 468 x 740 x 380 |
FINISH
RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost
BARCODE SCANNER
myRENZbox Bar Code Scanner / Reader
ZEBRA SE3307VA bar code scanner / reader integrated within control module.
MYRENZ.COM PORTAL
Accessible as a landlord account to manage the parcel box, user accounts and provide statistical reporting. Also open to registered users to manage personal myRENZbox accounts.
MYRENZBOX SERVICE TAG
A red RFID electronic chip SERVICE TAG is supplied, pre-programmed to provide management access to the service menu directly on the myRENZbox touch screen.
MYRENZBOX MOBILE APP
Free mobile app downloadable from either the ‘app store’ or ‘google play store’ & compatible with either IOS or ANDROID operating systems. myRENZbox mobile app is a registered user application for managing personal parcel deliveries & collections.
myRENZbox Modula Smart Parcel box
Extension Module A
myRENZbox – Integrated parcel delivery boxes 4x XS, 1x S, 3x M. Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.
DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm
WEIGHT
Nett weight: 113kg
Gross weight: 323kg (35kg per compartment)
POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw
CAPACITY
4x XS
1x S
3x M
| Outer Dimensions | Internal Dimensions | |
| XS | 533 x 97 x 408 | 468 x 81 x 380 |
| S | 533 x 194 x 408 | 468 x 178 x 380 |
| M | 533 x 388 x 408 | 468 x 372 x 380 |
| XL | 533 x 776 x 408 | 468 x 740 x 380 |
FINISH
RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost
MYRENZ.COM PORTAL
Accessible as a landlord account to manage the parcel box, user accounts and provide statistical reporting. Also open to registered users to manage personal myRENZbox accounts.
MYRENZBOX SERVICE TAG
A red RFID electronic chip SERVICE TAG is supplied, pre-programmed to provide management access to the service menu directly on the myRENZbox touch screen.
myRENZbox Modula Smart Parcel box
Extension Module B
myRENZbox – Integrated parcel delivery boxes 3x S, 1x M, 1x XL. Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.
DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm
WEIGHT
Nett weight: 80kg
Gross weight: 255kg (35kg per compartment)
POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw
CAPACITY
3x S
1x M
1x XL
| Outer Dimensions | Internal Dimensions | |
| XS | 533 x 97 x 408 | 468 x 81 x 380 |
| S | 533 x 194 x 408 | 468 x 178 x 380 |
| M | 533 x 388 x 408 | 468 x 372 x 380 |
| XL | 533 x 776 x 408 | 468 x 740 x 380 |
FINISH
RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost
myRENZbox Modula Smart Parcel box
Extension Module C
myRENZbox – Integrated parcel delivery boxes 1x XL, 2x M, 1x S. Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.
DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm
WEIGHT
Nett weight: 77kg
Gross weight: 217kg (35kg per compartment)
POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw
CAPACITY
3x S
1x M
1x XL
| Outer Dimensions | Internal Dimensions | |
| XS | 533 x 97 x 408 | 468 x 81 x 380 |
| S | 533 x 194 x 408 | 468 x 178 x 380 |
| M | 533 x 388 x 408 | 468 x 372 x 380 |
| XL | 533 x 776 x 408 | 468 x 740 x 380 |
FINISH
RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost
myRENZbox Modula Smart Parcel box
Extension Module D
myRENZbox – Integrated parcel delivery boxes 2x XL, 1x S. Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.
DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm
WEIGHT
Nett weight: 75kg
Gross weight: 180kg (35kg per compartment)
POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw
CAPACITY
1x S
2x XL
| Outer Dimensions | Internal Dimensions | |
| XS | 533 x 97 x 408 | 468 x 81 x 380 |
| S | 533 x 194 x 408 | 468 x 178 x 380 |
| M | 533 x 388 x 408 | 468 x 372 x 380 |
| XL | 533 x 776 x 408 | 468 x 740 x 380 |
FINISH
RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost
myRENZbox Modula Smart Parcel box
Extension Module E
myRENZbox – Integrated parcel delivery boxes, narrow 300mm wide, 1 x Nxl, Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.
DIMENSIONS
Height: 1828mm -0/+30
Width: 300mm
Depth: 408mm
WEIGHT
Nett weight: 55kg
Gross weight: 90kg (35kg per compartment)
POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw
CAPACITY
1x Nxl
2x XL
| Outer Dimensions | Internal Dimensions | |
| NXS | 300 x 97 x 408 | 235 x 81 x 380 |
| NS | 300 x 194 x 408 | 235 x 178 x 380 |
| NM | 300 x 388 x 408 | 235 x 372 x 380 |
| NL | 300 x 776 x 408 | 235 x 740 x 380 |
| NXL | 300 x 1746 x 408 | 235 x 1694 x 380 |
FINISH
RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost
myRENZbox Modula Smart Parcel box
Extension Module F
myRENZbox – Integrated parcel delivery boxes, narrow 300mm wide, 3x NS, 1x Nm & 1x Nl, Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.
DIMENSIONS
Height: 1828mm -0/+30
Width: 300mm
Depth: 408mm
WEIGHT
Nett weight: 60kg
Gross weight: 235kg (35kg per compartment)
POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw
CAPACITY
3 x Ns
1x Nm
1x Nl
| Outer Dimensions | Internal Dimensions | |
| NXS | 300 x 97 x 408 | 235 x 81 x 380 |
| NS | 300 x 194 x 408 | 235 x 178 x 380 |
| NM | 300 x 388 x 408 | 235 x 372 x 380 |
| NL | 300 x 776 x 408 | 235 x 740 x 380 |
| NXL | 300 x 1746 x 408 | 235 x 1694 x 380 |
FINISH
RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost
myRENZbox Modula Smart Parcel box
Extension Module G
myRENZbox – Integrated parcel delivery boxes, narrow 300mm wide, 3x Ns & 3x Nm, Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.
DIMENSIONS
Height: 1828mm -0/+30
Width: 300mm
Depth: 408mm
WEIGHT
Nett weight: 62kg
Gross weight: 272kg (35kg per compartment)
POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw
CAPACITY
3 x Ns
3x Nm
| Outer Dimensions | Internal Dimensions | |
| NXS | 300 x 97 x 408 | 235 x 81 x 380 |
| NS | 300 x 194 x 408 | 235 x 178 x 380 |
| NM | 300 x 388 x 408 | 235 x 372 x 380 |
| NL | 300 x 776 x 408 | 235 x 740 x 380 |
| NXL | 300 x 1746 x 408 | 235 x 1694 x 380 |
FINISH
RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost
myRENZbox Modula Smart Parcel box
Extension Module H
myRENZbox – Integrated parcel delivery boxes 3x S & 3x M. Casing Sheet steel, Standard RAL colour. Overall Height 1828mm +0/+30, Width 533mm, Depth 408mm. 1 Control Module (A or B) is required for additional extension modules to work.
DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm
WEIGHT
Nett weight: 113kg
Gross weight: 323kg (35kg per compartment)
POWER CONSUMPTION
Hour: 35 w
Day: 840 w
Year: 306.6 kw
CAPACITY
4x S
2x M
| Outer Dimensions | Internal Dimensions | |
| XS | 533 x 97 x 408 | 468 x 81 x 380 |
| S | 533 x 194 x 408 | 468 x 178 x 380 |
| M | 533 x 388 x 408 | 468 x 372 x 380 |
| XL | 533 x 776 x 408 | 468 x 740 x 380 |
FINISH
RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost
BARCODE SCANNER
myRENZbox Bar Code Scanner / Reader
ZEBRA SE3307VA bar code scanner / reader integrated within control module.
MYRENZ.COM PORTAL
Accessible as a landlord account to manage the parcel box, user accounts and provide statistical reporting. Also open to registered users to manage personal myRENZbox accounts.
MYRENZBOX SERVICE TAG
A red RFID electronic chip SERVICE TAG is supplied, pre-programmed to provide management access to the service menu directly on the myRENZbox touch screen.
myRENZbox Modula Smart Parcel box
Extension Module I
myRENZbox – Integrated parcel delivery boxes, narrow 300mm wide, 12x Nxs, 1x Ns & 1x Nm, Casing Sheet steel, Standard RAL colour. 1 Control Module (A or B) is required for additional extension modules to work.
DIMENSIONS
Height: 1828mm -0/+30
Width: 533mm
Depth: 408mm
WEIGHT
Nett weight: 70kg
Gross weight: 350kg (35kg per compartment)
POWER CONSUMPTION
Hour: 5 w
Day: 120 w
Year: 43.8 kw
CAPACITY
12x Nxs
1x Ns
1x Nm
| Outer Dimensions | Internal Dimensions | |
| NXS | 300 x 97 x 408 | 235 x 81 x 380 |
| NS | 300 x 194 x 408 | 235 x 178 x 380 |
| NM | 300 x 388 x 408 | 235 x 372 x 380 |
| NL | 300 x 776 x 408 | 235 x 740 x 380 |
| NXL | 300 x 1746 x 408 | 235 x 1694 x 380 |
FINISH
RENZ Polyester Powder Coating
Standard Colours:
RAL9007 – Aluminium Grey
RAL9016 – Traffic White
Matt
Other RAL colours are available at an additional cost
