The myRENZbox Modula Extended smart parcel locker solution is both taller at 2216mm and deeper at 750mm than the standard Modula range.
These high-capacity parcel boxes are ideal for accommodating problematic large parcels and work perfectly in a click and collect retail environment to store customer orders placed online.
Likes it smaller brother, the Modula Extended parcel delivery box is a fully scalable intelligent system, meaning it can grow with your requirements and future proof your investment. The combination of hardware and unique RENZ software platform enables full automation of the parcel delivery, collection and returns process as well as a host of other commercial logistical processes.
At the ‘heart’ of this scalable system is a standalone control module with the option of four parcel extension modules. The system can be extended to manage up to 500 box compartments with electronic locks operated from a single controller.
In addition to the standard processes we can also provide expert technical support to integrate with building management software, electronic door entry systems and eCommerce retail click + collect processes.
The Modula Extended Parcel box system is connected to an online software portal at www.myrenz.com. The system portal enables remote management by the system owner. Registered users can also login to a user portal to manage their individual accounts.
Designed for both new build and retrofit projects, the Modula Extended System is engineered for both internal and external installation. Modula Extended is an ideal solution for the challenges presented by online parcel deliveries and future proofed for the challenges of tomorrow.
The Modula Extended parcel box is an intelligent solution offering smart technology integration with existing systems and modern devices.
The Extended range of Modula parcel boxes has been specifically designed to store large parcel deliveries all the way up to the full-height XXXL+.
The Modula and Extended ranges of intelligent parcel boxes can be later expanded to meet changing delivery requirements.
The Modula Extended parcel box can be fitted in both internal and external locations.
As with all myRENZbox parcel boxes, the Modula Extended parcel box features the latest in smart technology to streamline the entire parcel delivery process plus many other business critical logistics processes.
When it comes to parcel boxes, one size doesn’t fit all. We have decades of experience in the design, manufacture and supply of both mail and parcel boxes, meaning we can tailor your intelligent parcel box to your exact needs. Offering over 200+ RAL Colours and branded vinyl wrapping to suit.

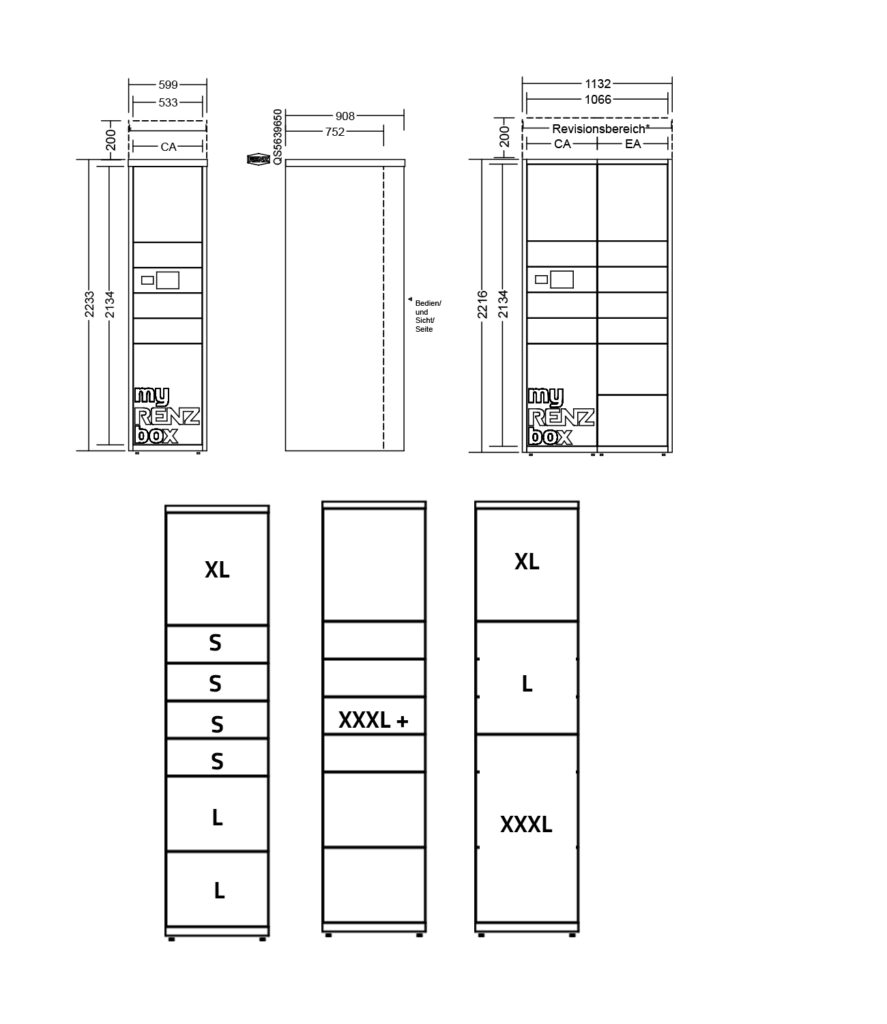

External dimensions in mm (W*H*D)
| Box | Standard 300mm Wide | Standard 533mm Wide | Extended 533mm Wide |
| XS | 300*97*408 | 533*97*408 | – |
| S | 300*194*408 | 533*194*408 | 533*194*750 |
| M | 300*388*408 | 533*388*408 | – |
| L | 300*776*408 | – | 533*582*750 |
| L+ | 300*1746*408 | – | – |
| XL | – | 533*776*408 | 533*1164*750 |
| XXL | – | – | – |
| XXXL | – | – | 533*1164*750 |
| XXXL+ | – | – | 533*2134*750 |
This parcel box is configured of the following products:
3 x S parcel boxes
1 x XL parcel box
1 x XXL parcel box
1 x Integrated myRENZbox control unit 8″
1 x NFC Reader
This parcel box is configured of the following products:
4 x Small parcel boxes
2 x L parcel box
1 x XL parcel box
This parcel box is configured of the following products:
2 x Small parcel boxes
1 x L parcel box
1 x XL parcel box
1 x XXL parcel box
This parcel box is configured of the following products:
1 x XXXL+ parcel box
This parcel box is configured of the following products:
1 x L parcel box
1 x XL parcel box
1 x XXXL parcel box
Freestanding Modula Extended parcel box featuring the following:
Control Module 1 and Extended Module D
8″ Display Unit
Indoor installation
myRENZbox electronic locks
Freestanding Modula Extended parcel box featuring the following:
Control Module 1 and Extended Module A, B & D
8″ Display Unit
Indoor installation
myRENZbox electronic locks
Freestanding Extended parcel box featuring the following:
Control Module 1 and Extended Module A
8″ Display Unit
Indoor installation
myRENZbox electronic locks
